HIGHLIGHTS IN MAGMAstress 5.5 - Prediction of core deformation

HIGHLIGHTS & BENEFITS OF MAGMA - Usability

 (c) MAGMA GmbH

HIGHLIGHTS

Prediction of core deformation as a function of

  • Mechanical behavior of different sand and binder systems
  • Thermal loading including buoyancy during filling and early stage solidification
  • Consideration of core print layout and positioning
  • Pressure dependent description of the bonded porous sand material
  • Time and temperature dependent mechanical data

MAIN BENEFITS

MAGMAstress quantitatively predicts core stresses and distortion offering:

  • Increased safety by avoiding core failure during casting through quantitative prediction of core stresses
  • Effectivity by optimizing shrinkage factors for core pattern layout through calculation of local thermal expansion coefficients
  • Robustness due to stabilized core production through pre-shaping of core print layouts
  • Availability by supporting major binder and sand systems
  • Cost savings by minimizing design loops, tool rework and lead times through systematic core print development

When downloading the PDF, please leave your contact data (you will receive the download link by e-mail) and thus agree to the processing and storage of it by MAGMA casting technology GmbH in Aachen. It will not be passed on to third parties. For further information how we process your personal data, please follow this link Privacy Policy.

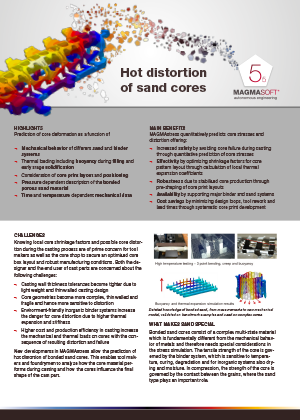

Download Fact Sheet

Latest Publication

Benefits for Users and Decision Makers – the New MAGMASOFT® 5.5

Efficient casting development, safe starts of production and robust production windows are the focus of the foundry industry. With this in mind, the new MAGMASOFT® Release 5.5 makes significant contributions for creating even more value in casting design, in toolmaking and in the foundry. Particular emphasis has been placed on further simplified and efficient use of the software and its results. Find more information in the press release.



Go to Publication

System Requirements

MAGMASOFT® is available for all suitable current operating systems such as Linux and Windows 10. MAGMASOFT® can be used on dual or multi-processor computers or massively parallel on cluster computers.

Total Displacement

Displacement Z
